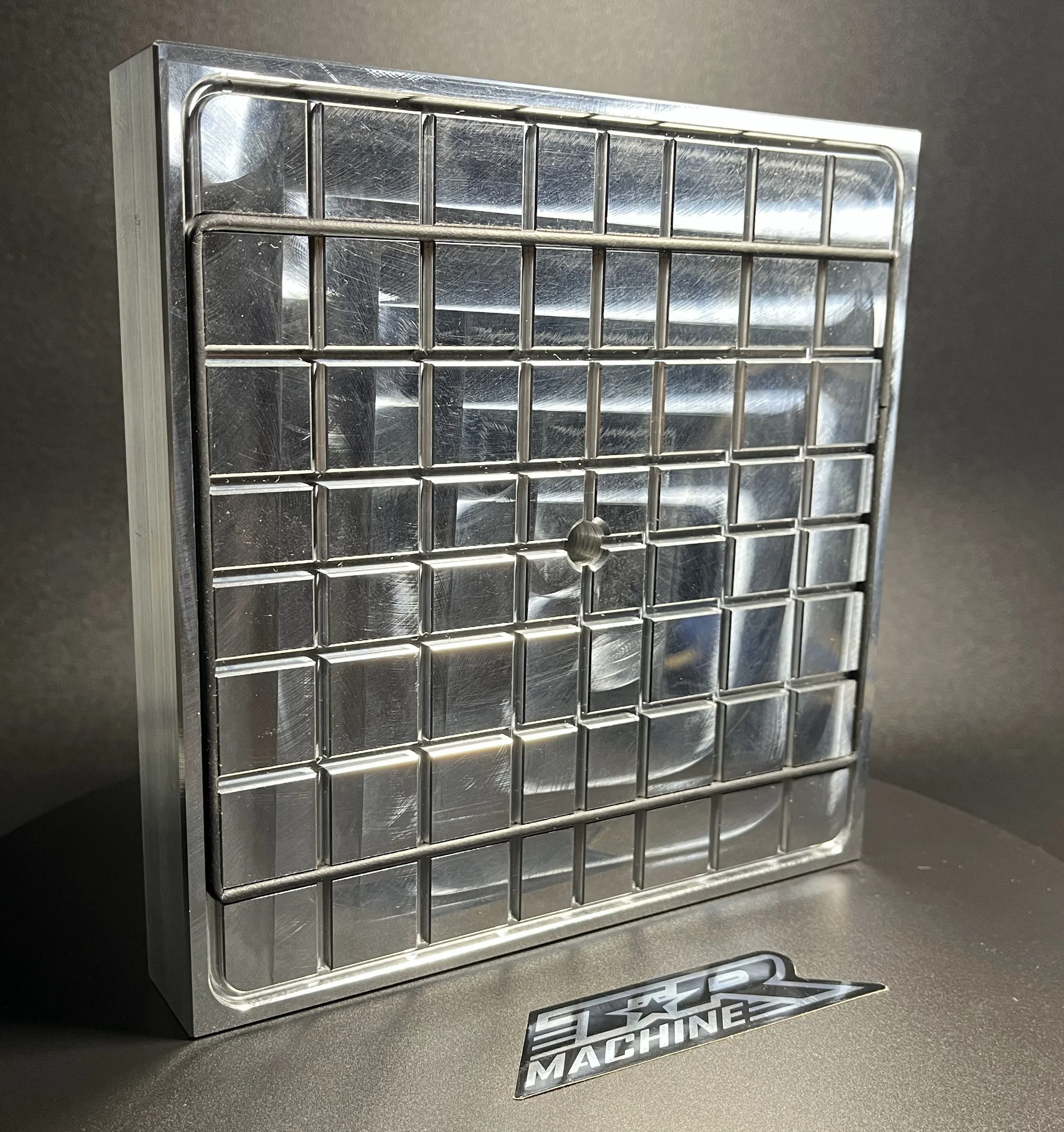

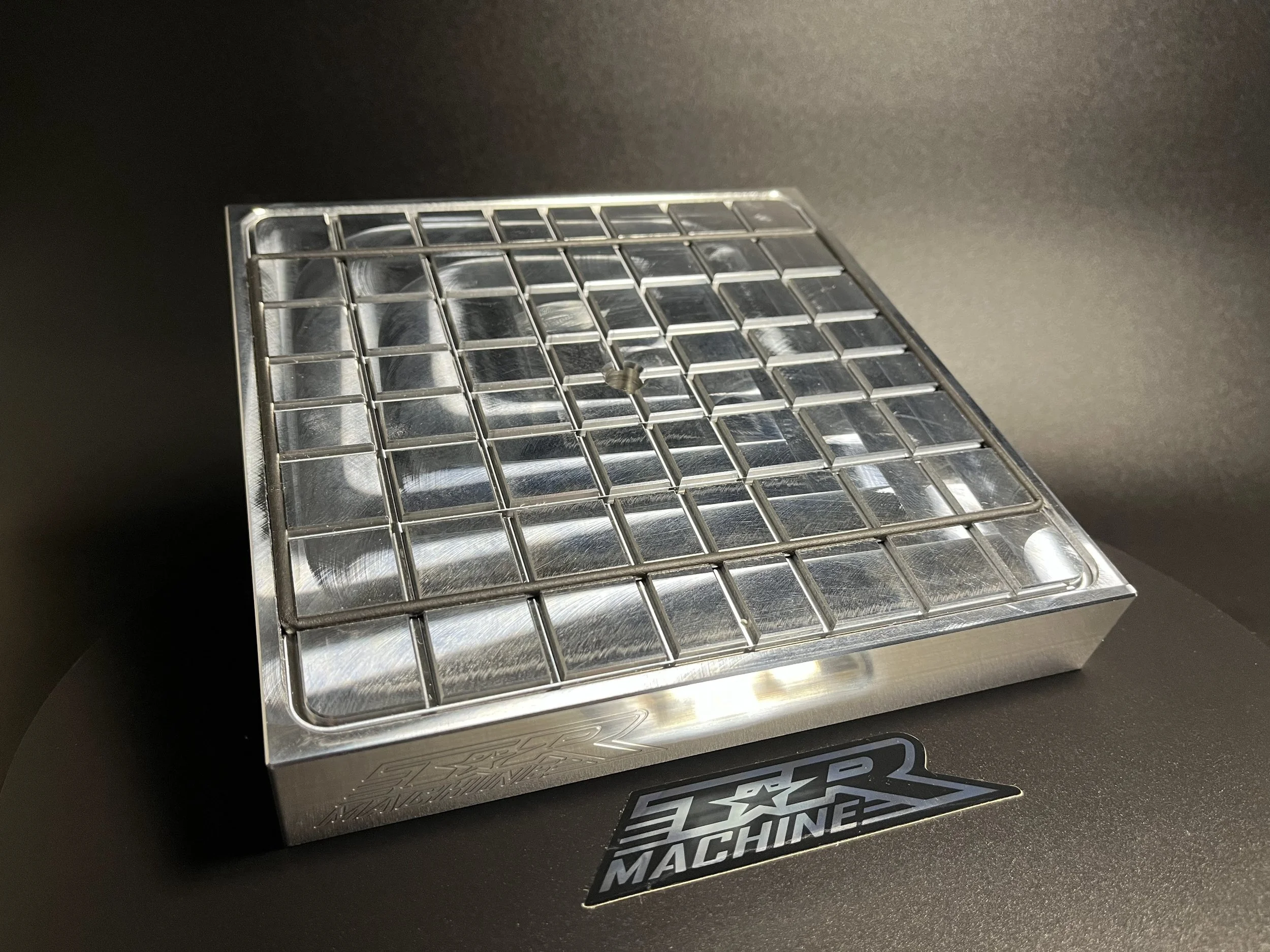

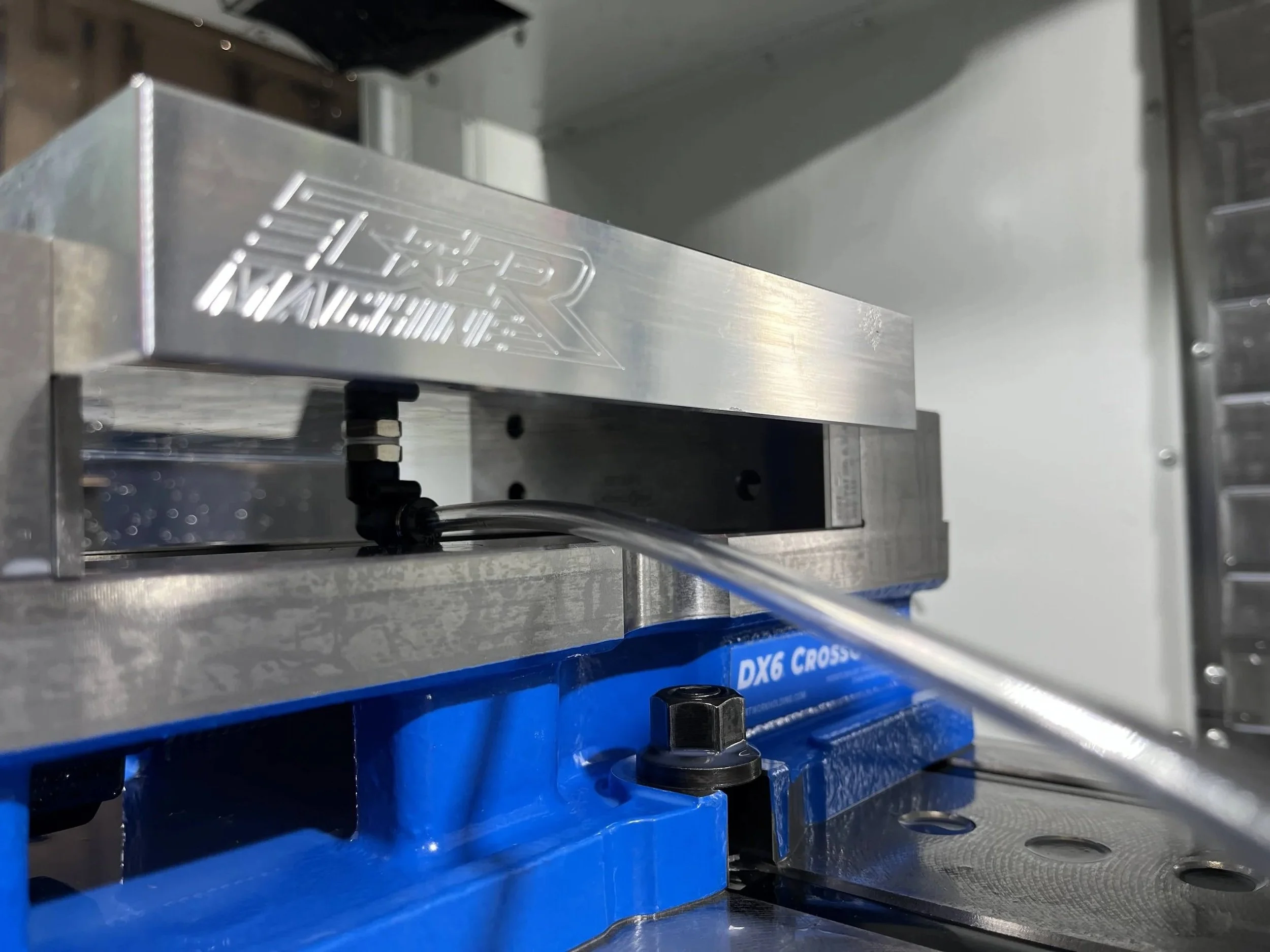

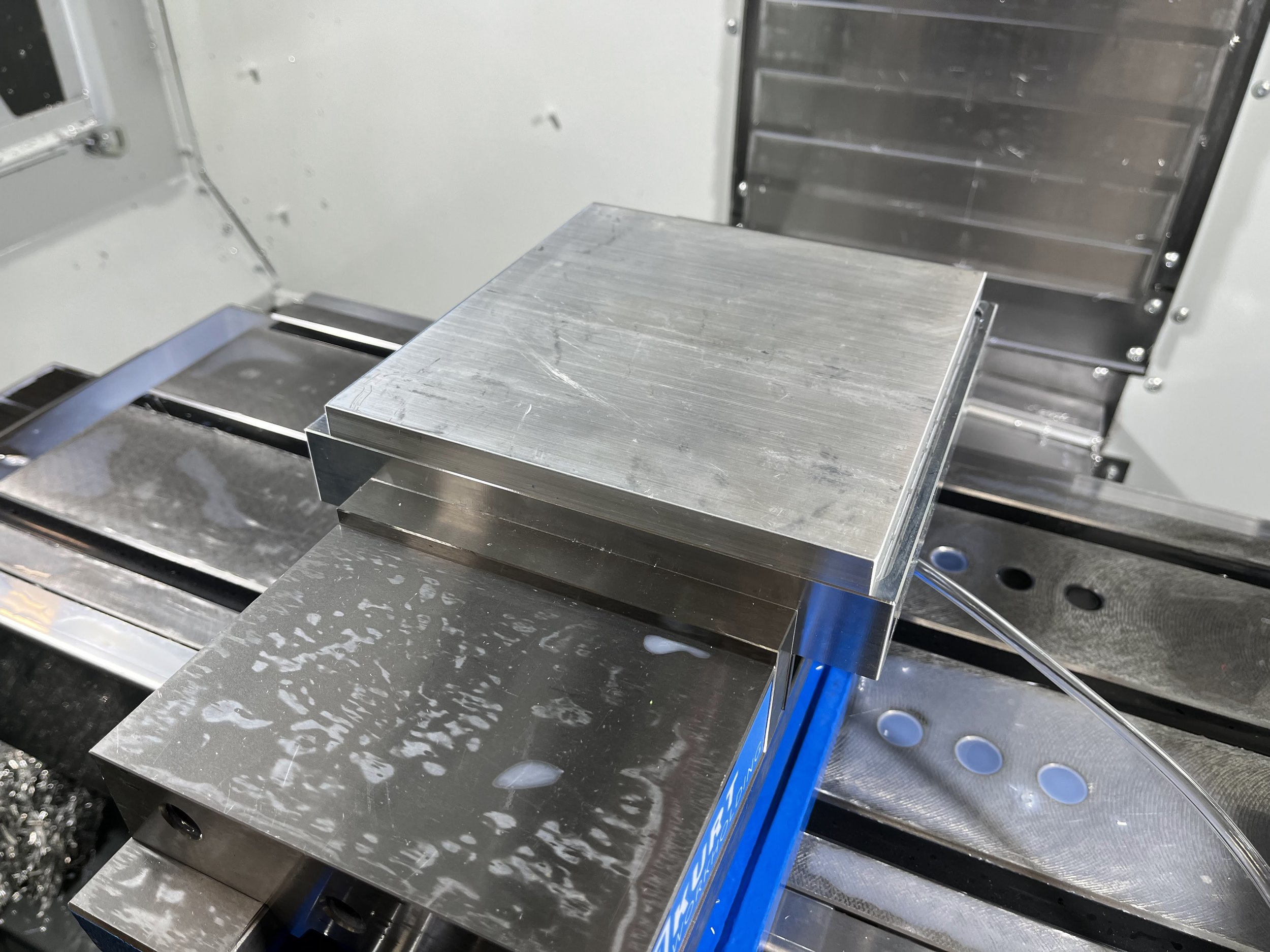

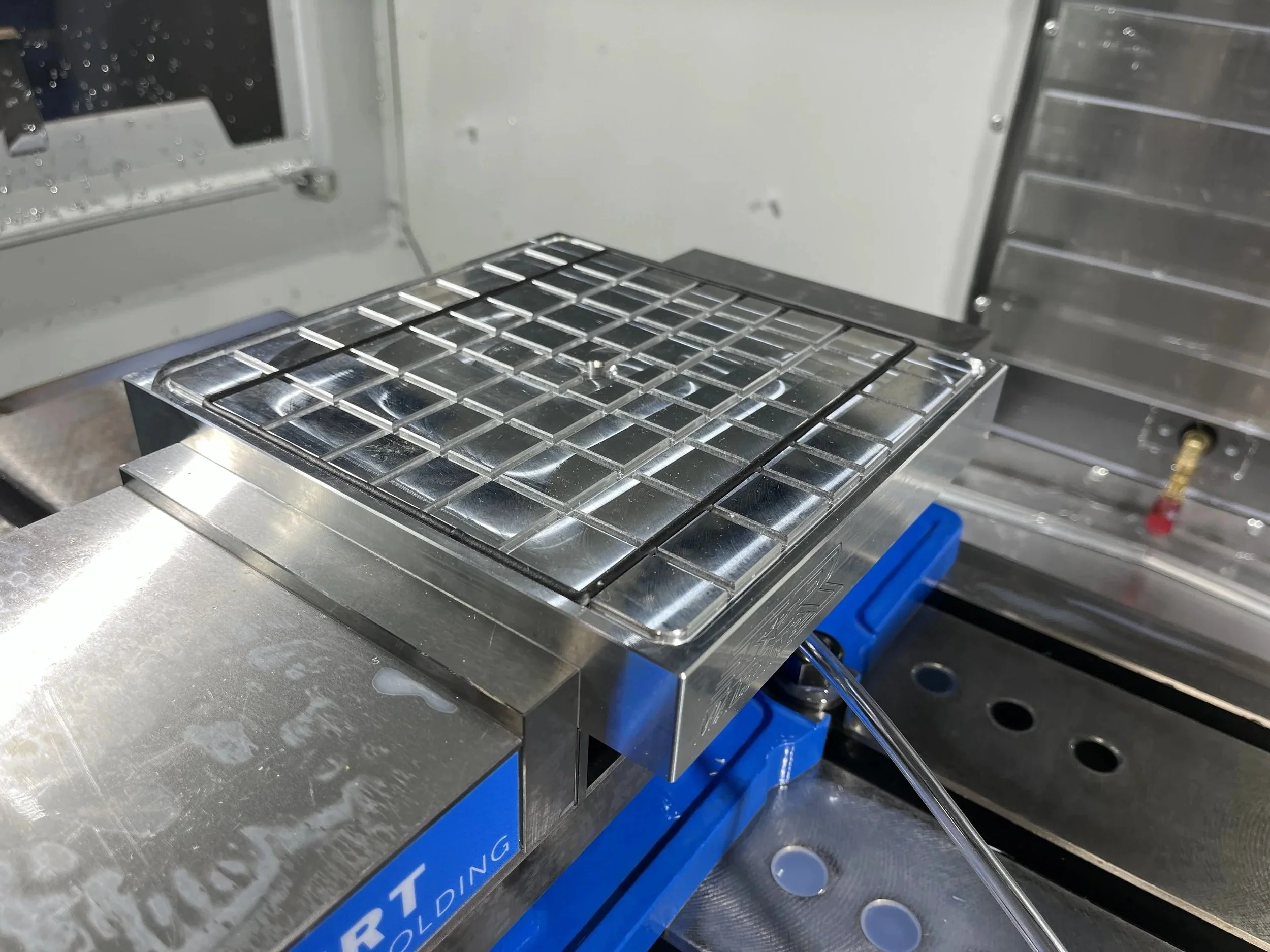

Compact vacuum chuck designed to drop into a standard 6" CNC vise for fast setup and removal—no need to pull the vise for small jobs. Machined from 6061 aluminum, it delivers consistent hold-down for flat parts without obstructing the top surface.
Includes 3 ft of gasket material and a 1/4" push-to-connect fitting for quick hookup to your vacuum pump. The gasket layout supports parts as small as 2" × 2" and scales up to the full 8" × 8" working area, with continuous coverage in between.
Includes:
8" x 8" x 1.25" 6061 aluminum vacuum chuck
3 ft vacuum gasket material
1/4" push-to-connect air fitting
